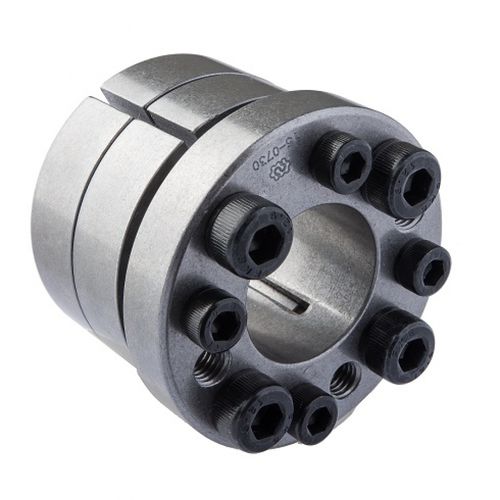

Rigid coupling MAV 6002 expandible axlefor high torqueself-centering
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Other characteristics
- for high torque, self-centering
- Installation system
- flange
- Torque
Max.: 1,071,000 Nm
(789,929.0619 ft.lb)Min.: 950 Nm
(700.684 ft.lb)
Description
high capacity
self-centering, self locking
fixed axial hub position during tightening
single taper design with two outer rings
well suited to transmit high bending moments
tolerances: shaft h7-h11; hub bore H7-H11
surface finish of shaft and hub bore Ra < 3.2 µm
Composition
slotted inner ring, with integrated push-off threads
two slotted outer rings
two sets of different sizes socket head cap screws, grade 12.9
