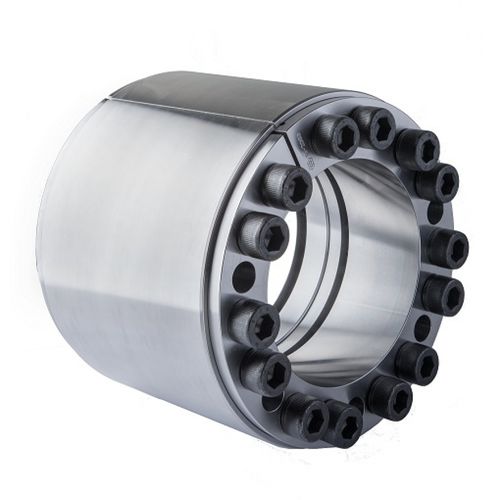

Rigid coupling MAV 6061 expandible axlefor high torqueself-centering
Add to favorites
Compare this product
Characteristics
- Type
- rigid, expandible axle
- Other characteristics
- for high torque, self-centering
- Installation system
- flange
- Torque
Max.: 2,354,000 Nm
(1,736,221.2994 ft.lb)Min.: 226,800 Nm
(167,279.0955 ft.lb)
Description
very high torque capacity
self-centering, self-locking
two thrust rings with single taper design
tolerances: shaft h8; hub bore H8
surface finish of shaft and hub bore Ra < 3.2 µm
Composition
slotted front thrust ring with integrated push-off holes
slotted rear thrust ring
dismantling ring
slotted outer ring with integrated push-off threads
set of socket head cap screws, grade 12.9
