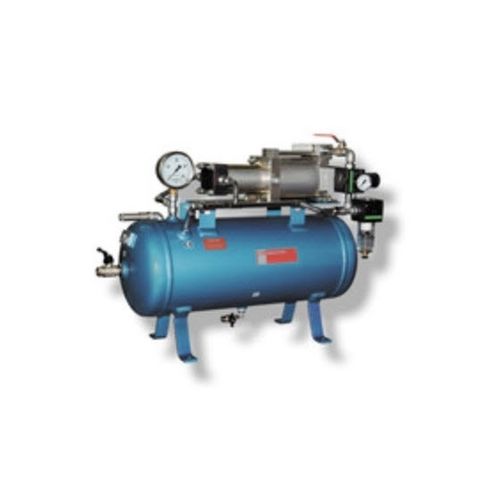

The Air Amplifier Station Type SPLV3/40L/21bar mainly consists of:
MAXIMATOR Air Amplifier type SPLV3,
Air inlet filter type BSP 1/2",
Pressure regulator type BSP 1/2",
Non-return valve type BSP 1/2",
Accumulator shut-off valve type BSP 1/4",
Pressure outlet shut-off valve type BSP 1/2".
The station is compl. assembled, tested and ready for connection.
Pressure ratio:
1:3,2
Utilities:
Air
Flow max.:
Depending on application
Connection Inlet PL
BSP 1/2“
Connection Outlet P:
BSP 1/2“
Dimension W x T x H:
850 x 400 x 660
Weight:
approx. 56,0 kg
Air drive pressure
min. 1 bar / max. 10 bar
