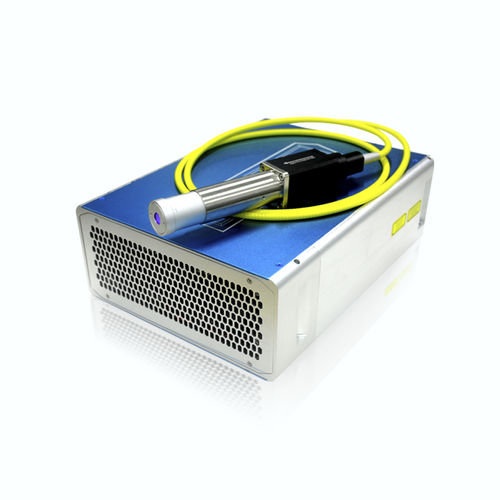

Q-switched laser / fiber / infrared / air-cooled
MFP series Maxphotonics Co., Ltd

{{requestButtons}}

Characteristics

  • Operational mode:

    Q-switched

  • Technology :

    fiber

  • Spectrum:

    infrared

  • Other characteristics:

    air-cooled

  • Wavelength:

    Max.: 1,070 nm

    Min.: 1,055 nm

    1,064 nm

  • Power:

    Min.: 4.5 W

    Max.: 51 W

    20 W, 10 W, 50 W, 30 W, 5 W

Description

Q-Switched Pulsed Fiber Laser (MFP5W-50W) Series are maintenance-free fiber lasers based on the Q-switched technology and MOPFA. These lasers deliver light centered at 1064nm and guided to the work piece via a flexible metal-sheathed fiber cable. It provides a set of pulse durations, repetition rates and peak powers. The optical head may be equipped with an opto-isolator, that makes it possible to mark directly on non-metallic materials (plastic, wood, paper, etc.) and some metal with low reflectivity.

Product features
■High beam quality fiber output
■Superior reliability, long lifetime.
■Universal DB-25 interface.
