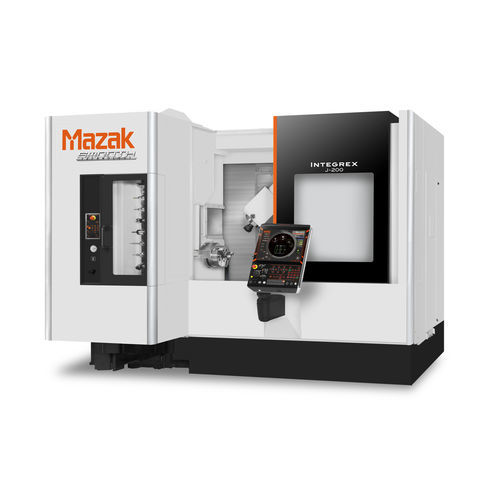

CNC milling-turning center INTEGREX j-200
universal3-axisspindle

CNC milling-turning center
CNC milling-turning center
CNC milling-turning center
CNC milling-turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Type
universal
Number of axes
3-axis
Structure
spindle
Other characteristics
compact, drilling, for large workpieces
Diameter

500 mm
(19.69 in)

X travel

450 mm
(18 in)

Y travel

200 mm
(8 in)

Z travel

550 mm, 1,225 mm
(22 in, 48 in)

Description

The INTEGREX j-200 is a compact machine designed for large workpieces - maximum machining size is dia. 500 mm and maximum machining length is 500 mm . The orthogonal Y-axis machine construction is the same as INTEGREX i-150 and INTEGREX e-series and allows face milling, end milling, and drilling to be performed in the large machining area without C-axis indexing thanks to long Y-axis stroke: 200 mm. INTEGREX j-series is designed to meet the following requirements: For customers who are using CNC tuning centers and machining centers and are interested in multi-tasking machines - but feel they are too complicated to operate and are expensive. For customers who need multi-tasking machines with a long Y-axis stroke and are easy to operate. For customers who need high performance machines in order to quickly produce high value-added components. For customers who need multi-tasking machines, but without the full range of features found in the other INTEGREX machines.
