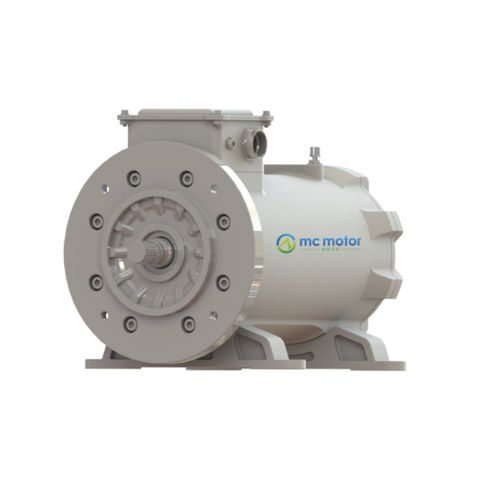

AC motor / synchronous / 380 V / 4-pole
SRPM165H4XO90 MC MOTOR TECHNOLOGY CO., LTD

{{requestButtons}}

Characteristics

  • AC/DC:

    AC

  • Type:

    synchronous

  • Voltage :

    380 V

  • Other characteristics:

    4-pole, high-efficiency, high-speed

  • Power:

    50 - 100 kW

  • Heating technology:

    electric

  • Torque:

    43 Nm (31.7152 ft.lb)

  • Power:

    90 kW (122.366 hp)

  • Rotational speed:

    24,000 rpm (150,796.45 rad.min-1)

Description

Product Feature
1.Suitable for the 24000rpm high speed
2.Reserve a large margin of security
3.High power & high torque
4.High efficiency
5.Small size
6.Low noise low vibration
7.The autonomous patented cooling structure

Specifications
Model type: SRPM165H4XO90
Voltage: 380V AC
Rated Power: 90KW
Rate Torque : 43 N.m
Working speed: 24000rpm
Efficiency: 96.5%
Duty Type: S1
Isolation: H
Water/dust Proof: IP67
Pole Number: 4
N Weight: 48KG
Cooling Method: Patented Cooling System
Position Signal: Resolver
