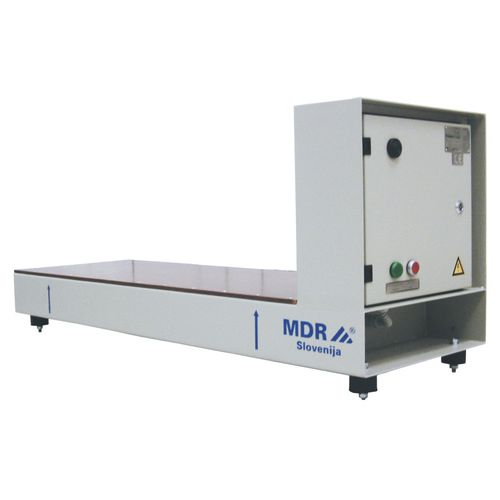

flat metal detector / for conveyors / magnetic
LKDE MDR d.o.o.

{{requestButtons}}

Characteristics

  • Type:

    flat

  • Applications:

    for conveyors

  • Other characteristics:

    magnetic

Description

Designed for conveyor lines in quarries.

Maximum height of material on the belt: up to 15 cm.

LKDE type metal detectors can easily be installed into the manufacturing lines, under the transport belt.

Easy installation in manufacturing lines (without cutting the conveyor belt).

Detection of all types of metal: Fe, NonFe (Al,Cu,…), Inox (SS).Visual (light) and audio (sound) indication when metal piece is detected.

Possible automatic separation of the contaminated product without stopping the manufacturing process - with separation mechanism on the conveyor belt.

USB connection or RS 232/485 or Ethernet on request.

Statistics: number of detections, date and time of detection

The possibility to enter 30 different settings for products.

Many years of stable operation (automatic calibration).

Critical parameters are password protected.

Clear and simple-to use multi-level menus.

Simple assembly, disassembly and cleaning.

Casing from high quality steel.
