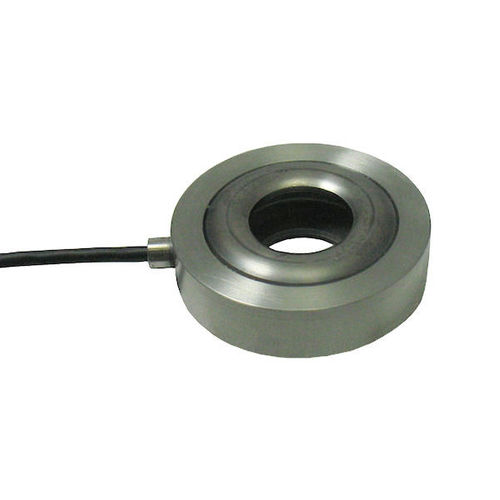

compression load cell / ring / through-hole
KR20 ME-Messsysteme GmbH

{{requestButtons}}

Characteristics

  • Type:

    compression

  • Form:

    ring

  • Other characteristics:

    through-hole

  • Rated force:

    Min.: 5 kN

    Max.: 200 kN

Description

type: bolt force sensor;
accuracy class: 1 %;
dimensions: Ø16 mm x 7 mm...Ø 40 mm x 12 mm;
inner diameter: 6 mm...16 mm;
connection: 3m STC-32T-4;
weight: 80,6 g;
calibration sheet 5 measurement points; 3 test series with 3 mounting positions;
accessories: 2x washers for load distribution, diameter 12 mm x 3 mm;
This force sensor is designed for fastener testing and for the measurement of preload force.
