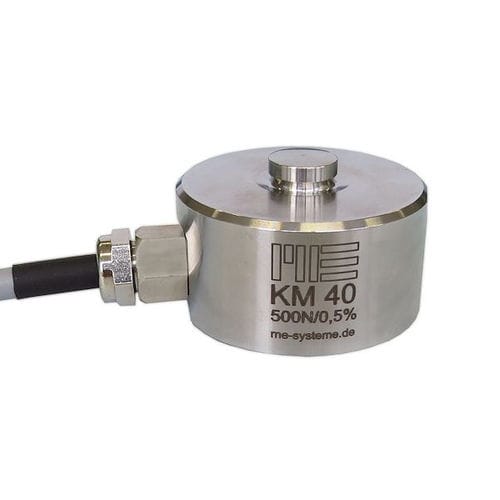

Compression load cell KM40button typestainless steel
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- button type
- Other characteristics
- stainless steel
- Rated force
Min.: 500 N
Max.: 50,000 N
Description
type: load cell;
accuracy class: 0.5 %;
dimensions: Ø 40mm x 25mm;
force transmission: load button R50, Ø 11 mm;
connection: 3 m Unitronic FD CP Plus / 4x0,14;
material: stainless steel;
weight: x g;
Catalogs
KM40
6 Pages
