Computer-controlled decade box M525

programmablecapacitance

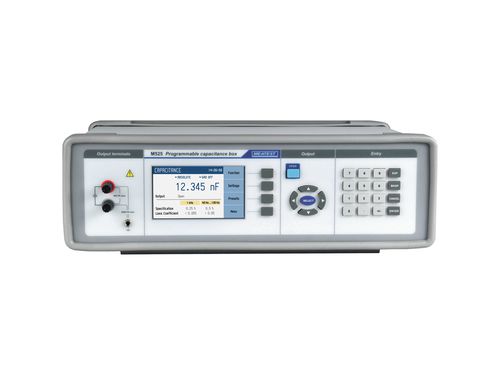

M525 Programmable Capacitance Decade box is designed specifically for calibration of capacitance ranges of multimeters and RCL meters. Due to its versatility it can be used in calibration laboratories, repair centers and in production lines, where remote control of capacitance is needed. The M525 contains relays with high current capability and capacitors with polypropylen dielectricum for best performance. Large LCD shows all related parameters including total accuracy, timed output sequences, customizable units, automatically compensated parasitic capacitances. M525 also have easy recalibration procedure. Instrument can be connected to different ATE systems via RS232, USB, LAN or GPIB interface and is compatible with WinQbase/Caliber calibration software. Specifications: Capacitance: 100 pF - 100 uF (± 0.25% / year)
