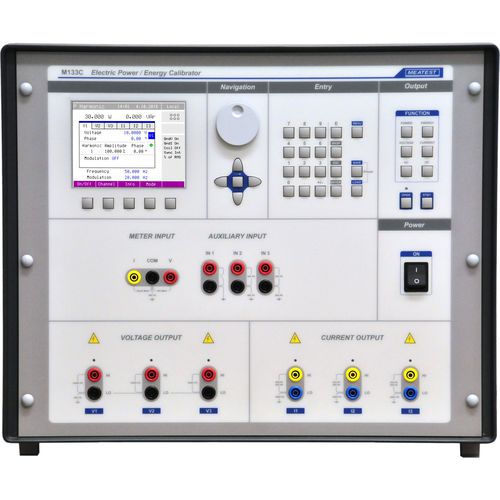

Power calibrator M133C
energypower metercompact

power calibrator
power calibrator
power calibrator
power calibrator
power calibrator
Add to favorites
Compare this product


Characteristics

Measured physical value
power, energy
Applications
power meter
Options
compact, three-phase
Voltage

Min.: 0 V

Max.: 600 V

Description

M133C is electric AC/DC power and energy calibrator for calibration of power meters, power transducers, power quality analysers and generally all kinds of power measuring devices. AC voltage, current, power and energy functions have calibrated phase shift with accuracy in frequency range from 15 Hz to 1 kHz with resolution as good as 0.001 Hz. Simulated electric power (including power quality functions) can be set independently in each phase of both voltage and current signals. Built-in 5½ process multimeter for transducer calibration is standard part of every M133C calibrator. Four different distortion functions are available in M133C calibrator: Harmonic distortion with up to 50 harmonic products, interharmonic distortion up to 5000 Hz, amplitude modulation using symmetrical sine or square wave envelope and finally dip/swell amplitude modulation using custom square wave envelope. Modulation frequency can be set in range from 0.001 Hz to 50 Hz, maximum modulation depth is 30 % and again, all the distortion parameters can be set independently for each phase. M133C is more than just a sophisticated power source. Using built-in process multimeter, both transducer inputs and outputs can be handled by the M133C at the same time so you can calibrate it more easily, using no other calibration equipment. Floating current outputs can be connected directly with voltage outputs to allow for 3-wire power meter calibration. M133C calibrator is fully compatible with Meatest calibration SW package CALIBER/WinQbase which allows for time saving automated calibrations using any of the three installed remote control interfaces – LAN, GPIB, RS232.
