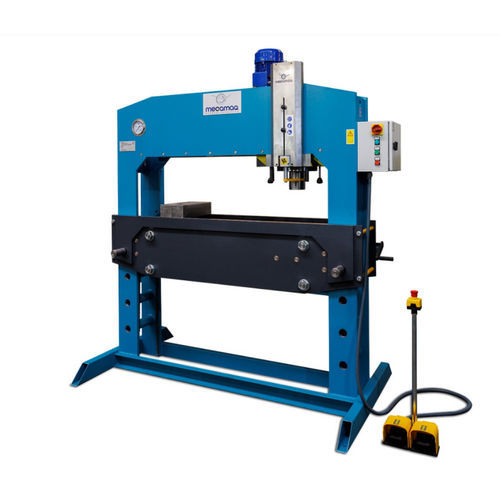

electro-hydraulic press / straightening / vertical / workshop
CD-100 MECAMAQ, SL

{{requestButtons}}

Characteristics

  • Operation:

    electro-hydraulic

  • Function:

    straightening

  • Other characteristics:

    vertical, workshop, double-action, bridge, with floating headstock

  • Opening:

    250 mm

  • Force:

    980.7 kN

Description

- Motor-operated presses by means of electrical pedals and a hydraulic group with electrically-operated valves with single or double speeds, in terms of requirements. Cylinder headstock floats along the bridge of the press by bearings and brake lock, which is very useful for straightening large pieces as the strength of the pressing cylinder can be applied on different points without having to move the same or can be used to work with different tools, as the strength can be applied on each of them.
- Solid structure in a monobloc format with a frontal width of 1500 mm and floating bedplate adjustable to different heights by means of an endless reducer and end transmission with pinions and chains.​
