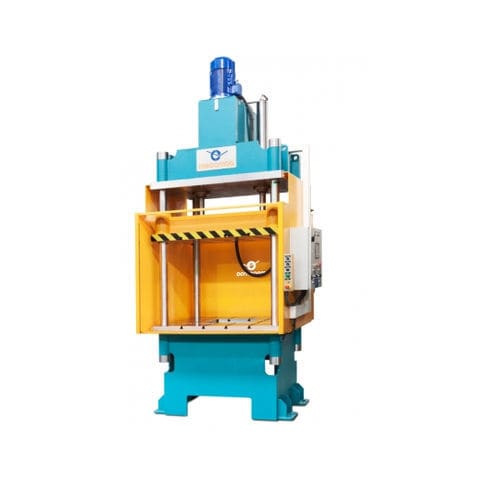

Hydraulic press PHA40 4551
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Force
398.5 kN
- Opening
1,110 mm
(44 in)
Description
Ø cylindrical columns (mm)80
Lower and upper plate (mm)1100x1100
Maximum oppening (mm)1110
Engine power (HP)10
Approximation speed (mm/sec)40
Work speed (mm/sec)10
Max. pressure (bars)250
Machine dimensions (m)1,80x1,50x3,70
Weight (Kg.)5000
