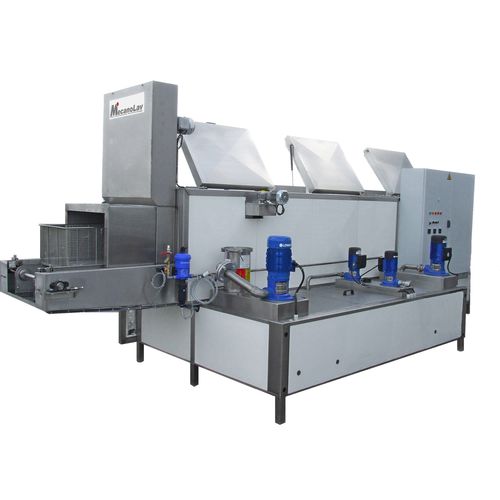

Linear multistage parts washer for continuous or step-by-step treatment
Modular design > lenght / lines / stages
Useful dimensions can be adapted as needed
3 conveying technologies : Chains – Belts – Workpiece carriers
High flow > 0,5 to 2 meter / minute
304L Stainless steel structure for strength and durability
Easy maintenance access to modules and tanks
Made in France
Flexible process
Well established in high rate production processes, the tunnel parts washer can be tailored to the application and allows the integration of multiple modules for continuous part processing.
Degreasing steps
Phosphation steps
Reverse flow rinsing steps
Passivation and rust protection steps
Hot air drying steps
Tailored to the parts to be treated
For optimal cleaning and drying, the useful dimensions of the tunnel are adjusted to the shape and size of the parts to be treated.
Useful width from 100 to 9000 mm
Useful height from 7 to 1200 mm
Belt conveyor
Designed to handle multiple part references, especially in the general industry , the tunnel parts washer is made up of a stainless steel wire mesh belt to accommodate part diversity.
Driven by a geared motor with torque limiter
Adjustable guiding rails
Configurable speed
Chain conveyor
Two stainless steel chains with hollow links enable scrolling of existing Work Piece Carrier. A first conveyor upstream, a second one at the exit of the tunnel ensures the return of the carrier towards the next operation.
Input detection sensors
Exit saturation sensor
Continuous or step-by-step flow
Pallet conveyor
Specific workpiece carriers designed for the parts are provided with the parts washer. This type of conveyor allows :
