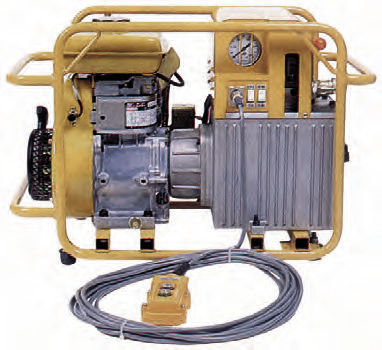

Gasoline engine hydraulic pump DPM 50-20x series
Add to favorites
Compare this product
Characteristics
- Operation
- gasoline engine
- Pressure
Min.: 0 bar
(0 psi)Max.: 700 bar
(10,153 psi)
Description
Hydraulic pumps DPM51-201 and DPT51-220
✔ Crimping with double action 1000 kN compression heads. Pump DPM51-201
✔ Dimensions: 670 x 405 x 475 mm.
✔ Weight: 60 kg.
✔ Flow: 0 - 20 bars : 7.50 l/mn 20 - 700 bars : 1.20 l /mn Pump DPT 51-220 The same as DPM51-201 except that there is a remote control (input - bearing - output + switch for automatic cycle)
✔ Dimensions: 665 x 405 x 440 mm.
✔ Weight: 58 kg.
Please state type of coupler when ordering: see page 296.
Delivered in a wooden box.
