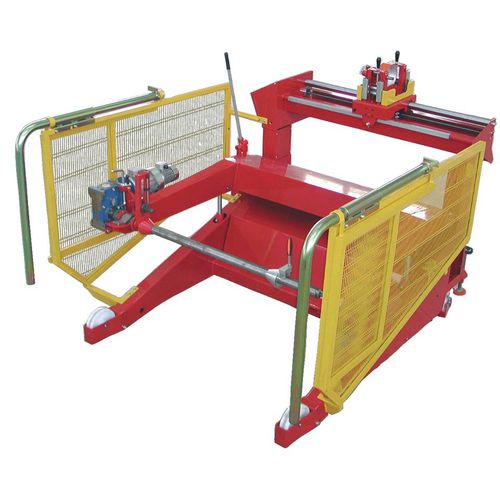

Coil winder CD40-M3 series

motorized

Weight capacity 6000 kg - Drums min.Ø 800mm max.Ø 2600mm LOW PERFORMANCE - max. 10 operations a day on average CE-approved safety guards fitted for protection. Electro-hydraulic lifting. VULKOLLAN wheels (two wheels and two castors). Electro-hydraulic parking jacks. Rack-operated drum locking shaft. AC variable-speed winding unit, continuous speed adjustment 0-50 rpm. Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1800 mm Machine width (mm) - 2600 mm Machine length (mm) - 3323 mm Length with guards on (mm) - 4163 mm Empty weight (kg) - 750 kg Drums - maximum diameter (mm) - 2600 mm Drums - minimum diameter (mm) - 800 mm Drums - Maximum width (mm) - 1350 mm Drums - Minimum width (mm) - 300 mm Drums- Max. weight capacity (kg) - 6000 kg Total power (kW) - 6 KW Torque - 1470 nm Machine movement speed - 4 km/h Min./max. rpm (rpm at drum) - 0-50/min
