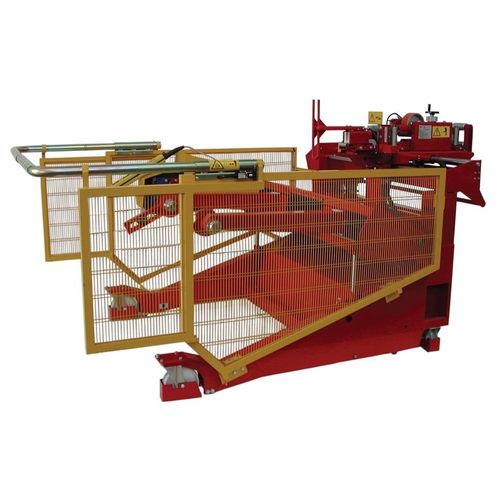

Coil winder CD-22/M3/BM series
motorized

coil winder
coil winder
coil winder
Add to favorites
Compare this product


Characteristics

Product application
coil
Other characteristics
motorized

Description

Weight capacity 4000 kg - Drums min. Ø 800mm max. Ø 2200mm LOW PERFORMANCE - max. 20 operations a day on average Lifting arms CE-approved safety guards fitted for protection. Electro-hydraulic lifting. VULKOLLAN wheels (two wheels and two castors). Electro-hydraulic parking jacks. AC variable-speed winding unit, continuous speed adjustment 0-70 rpm. Supply voltage 380 V three phase (to be confirmed at order stage) Machine height (mm) - 1700 mm Machine width (mm) - 2990 mm Length with guards on (mm) - 4200 mm Empty weight (kg) - 1600 kg Drums - maximum diameter (mm) - 2200 mm Drums - minimum diameter (mm) - 800 mm Drums - Maximum width (mm) - 1540 mm Drums - Minimum width (mm) - 490 mm Drums- Max. weight capacity (kg) - 4000 kg Total power (kW) - 6.5 KW Torque - 843 Nm Machine movement speed - 4 km/h Min./max. rpm (rpm at drum) - 0-70 g/min

VIDEO

Catalogs

No catalogs are available for this product.

See all of MECCANICA NICOLETTI‘s catalogs
