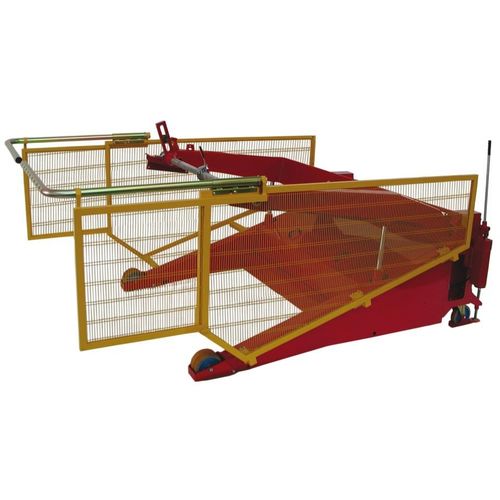

Cable drum unwinder CD-15manualwith shaftfor small loads
Add to favorites
Compare this product
Characteristics
- Type
- cable drum
- Operation
- manual
- Other characteristics
- with shaft, for small loads
- Roll diameter
Max.: 1,600 mm
(62.99 in)Min.: 600 mm
(23.62 in)
Description
max. 20 operations a day on average
CE-approved safety guards fitted for protection.
Manual pump hydraulic lifting.
NYLON wheels. (two wheels and two castors).
Manual front parking jacks.
Rack-operated drum locking shaft
Machine height (mm) - 1400 mm
Machine width (mm) - 2200 mm
Machine length (mm) - 2600 mm
Empty weight (kg) - 240 kg
Drums - Maximum width (mm) - 1130 mm
Drums - Minimum width (mm) - 300 mm
Drums- Max. weight capacity (kg) - 3000 kg
Machine movement speed - 4 km/h
