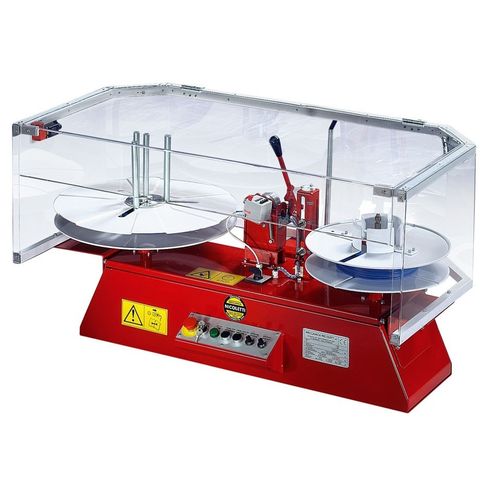

Cable coiler-uncoiler 04-MA

table-topautomatic

For high workloads Stove-enamelled sheet steel construction. Built-in hand-operated shears. Programmer/counter: accommodates cable max. Ø 20mm, programming counting down from up to 999.9m. Maximum approximation of one decimetre. Margin of error ±1.5% for cable diameters max. Ø 12-14mm. Power supply 220 V single phase. Machine height (mm) - 500 mm Machine width (mm) - 500 mm Machine length (mm) - 1240 mm Weight (kg) - 74 kg Total power (kW) - 0,35 kw Coiler - Plate diameter (mm) - 400 mm Coiler - Coil height (mm) - 60-120 mm Coiler - Max. coil core diameter (mm) - 140 mm Coiler - Min. coil core diameter (mm) - 140 mm Uncoiler - Plate diameter (mm) - 550 mm Uncoiler - Coil height (mm) - 250 mm Uncoiler - Max. coil core diameter (mm) - 320 mm Uncoiler - Min. coil core diameter (mm) - 80 mm Load capacity (kg) - 40 kg
