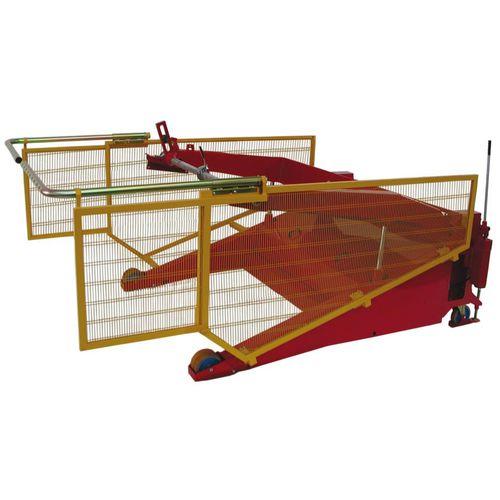

Cable drum unwinder CD-40for heavy loadswith shaft
Add to favorites
Compare this product
Characteristics
- Type
- cable drum
- Other characteristics
- for heavy loads, with shaft
- Roll diameter
Min.: 600 mm
(23.62 in)Max.: 2,600 mm
(102.36 in)
Description
max. 20 operations a day on average
CE-approved safety guards fitted for protection.
Electro-hydraulic lifting.
VULKOLLAN wheels. (two wheels and two castors).
Electro-hydraulic front parking jacks.
Rack-operated drum locking shaft
Supply voltage 380 V three phase (to be confirmed at order stage)
Machine height (mm) - 1400 mm
Machine width (mm) - 2600 mm
Machine length (mm) - 3080 mm
Length with guards on (mm) - 3700 mm
Empty weight (kg) - 560 kg
Drums - Maximum width (mm) - 1458 mm
Drums - Minimum width (mm) - 300 mm
Drums- Max. weight capacity (kg) - 6000 kg
Total power (kW) - 3.0 KW
Machine movement speed - 4 km/h
