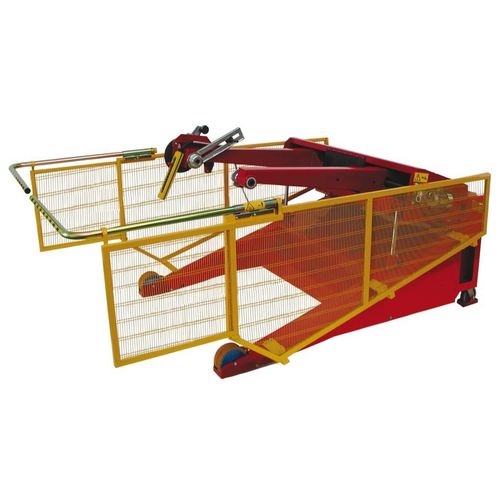

Cable drum unwinder CD-100/BM
motorizedwith movable arms

cable drum unwinder
cable drum unwinder
cable drum unwinder
Add to favorites
Compare this product


Characteristics

Type
cable drum
Operation
motorized
Other characteristics
with movable arms
Roll diameter

Min.: 800 mm
(31.5 in)

Max.: 3,000 mm
(118.11 in)

Description

LOW PERFORMANCE - max. 20 operations a day on average Independent arms with separate opening and closing operation, motor driven. Electro-hydraulic lifting. VULKOLLAN wheels. (two wheels and two castors). Electro-hydraulic front parking jacks. CE-approved safety guards fitted for protection. Supply voltage 380 V (to be confirmed at order stage) Not suitable for rail handling Machine height (mm) - 1400 mm Machine width (mm) - 2720 mm Machine length (mm) - 3080 mm Length with guards on (mm) - 3700 mm Empty weight (kg) - 2000 kg Drums - Maximum width (mm) - 2000 mm Drums - Minimum width (mm) - 490 mm Drums- Max. weight capacity (kg) - 10000 kg Total power (kW) - 4.0 KW Machine movement speed - 4 km/h
