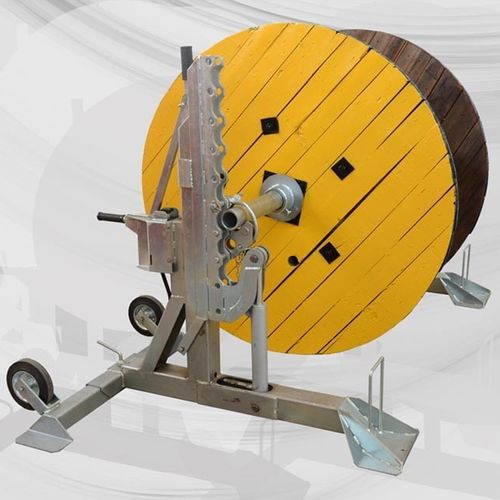

Cable drum lifter SM-20/AP/100

cable drum lifter
cable drum lifter
Add to favorites
Compare this product


Description

Drum jack drums max. 10000 kg HIGH PERFORMANCE - Mainly for industrial use and for cable laying Galvanized steel drum jack. Very strong hydraulic pump for jacking, with ergonomically positioned operating lever, padlockable Comes with safety device to stop the drum dislodging. Runs on four radial bearings. Support bracket positioning in 100mm increments Jacking travel 250mm Rear foot can be removed to reduce size for transport. Wheels for easy handling. Height (mm) - 1350 mm Width (mm) - 1450 mm Length (mm) - 1100 mm Weight (kg) - 85x2 kg Drums - maximum diameter (mm) - 2800 mm Drums - minimum diameter (mm) - 800 mm Drums - Maximum width (mm) - 1350 mm Load capacity (kg) - 10000 kg

VIDEO
