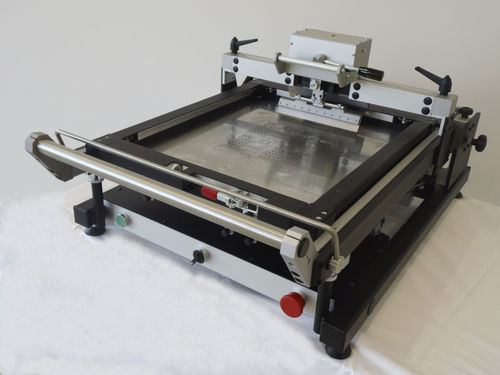

Automatic stencil printer S20

solder pasteSMTflat bed

squeegee guided stencil printer S20 Technical data Frame size max. 550 x 470 mm Rapid tensioning frame – 4 fold another types of frames may be accepted PCB size max. 400 x 375mm Printing area max. 350 x 340 mm Squeegee guiding Linear quides Squeegee drive Manually Squeegee changeover manual reversible dual squeegee Universal holders for metal or rubber blade adjustable squeegee inclination 0 - 60 ° adjustable squeegee contact pressure 0 - 200 N Printing Single or double-sided boards Table lowering automatic table lowering / Z=10 mm lowering speed adjustable 0,2 - 4 mm/s adjustable table contact pressure 0 - 450 N Table - X, Y / theta adjustment +/- 12 mm / +/- 2,7° Off-Contact ( Z-Axix ) Range 0 – 24 mm Table adjustment accuracy +/- 0,01 mm Supply Compressed air 6 bar Dimensions and wight 860 x 650 x 380 mm / 75 kg Application area suitable for small and medium volume production screen- or stencilprinting of glue, solder paste or another substances qualified for fine pitch components minimum pitch of pads 0,4mm
