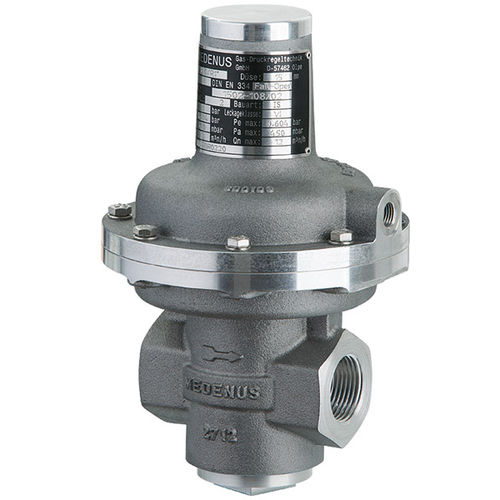

Gas pressure regulator R 50
for inert gasesfor compressed airfor air

gas pressure regulator
gas pressure regulator
gas pressure regulator
gas pressure regulator
gas pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for inert gases, for compressed air, for gas, for air, for oxygen, for LPG, for nitrogen, propane, for CO2, for hydrogen, for natural gas, for CNG
Technology
spring
Number of stages
single-stage
Material
cast aluminum
Applications
industrial, high-pressure, high-purity, low-pressure, for vacuum, for variable air volume, HVAC, for pressure calibration, for pressure gauges
Other characteristics
high-precision, modular, rugged, direct-acting, direct-operated, zero-bleed, CE certified, low-speed, corrosion-resistant
Pressure

Min.: 0 bar
(0 psi)

Max.: 3 bar
(43.51 psi)

Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 150 m³/h
(5,297.2 ft³/h)

Orifice diameter

11 mm, 15 mm, 20 mm, 25 mm
(0.433 in, 0.591 in, 0.787 in, 0.984 in)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Description

The MEDENUS gas pressure regulator type R50 ensures a constant outlet pressure when the gas usage varies and ensures a quick pressure regulation when the flow rate abruptly changes. The gas pressure regulator R50 is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The R50 is available with thread connections Rp 1", Rp 1,5", Rp 2" and a maximum inlet pressure up to 3,0 bar. All gas pressure regulators are certified by DVGW and CE.
