Power resistor M247

metal-filmlow-inductancehigh-frequency

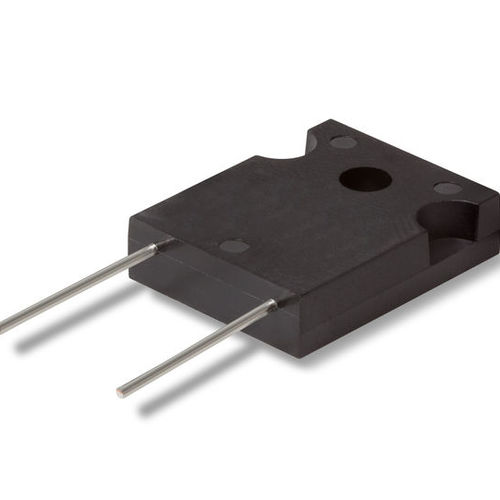

Power Resistor M247 - metal film 140 watt power resistor @25 °C in TO-247 housing and max. working voltage of 700V Power rating up to 140 watts (on heat-sink) Resistance range 0.02Ω...51kΩ Resistance tolerance from ±1% Temperature coefficient from ±50ppm/°C TO-247 housing Low inductance (<50nH) The thin-film power resistor M247 in TO-247 housing achieves a performance of up to 140 watts @25°C with a suitably dimensioned heat-sink (not included in delivery) or 5 watt without heat-sink. The resistor has low inductance (<50nH) and a resistance range of 0,02Ω..51kΩ with a resistance tolerance of ±1% and a thermal resistance depending of the version of 0,9°C..1,3°C. The resistance is suitable for the applications in power units, control and drive circuits, automotive and a wide range of high frequency devices.
