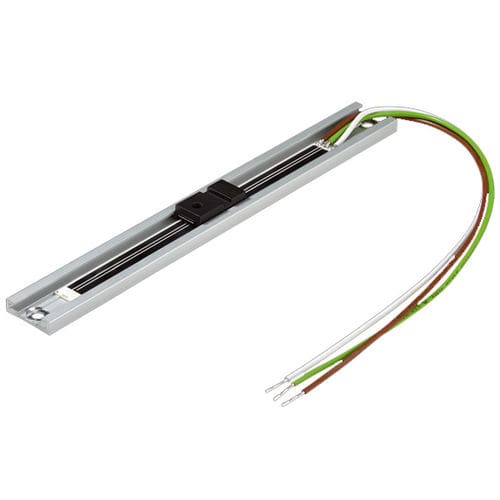

Linear position sensor MBX
potentiometeranalogfor small spaces

linear position sensor
linear position sensor
Add to favorites
Compare this product


Characteristics

Type
linear
Technology
potentiometer
Output signal
analog
Applications
industrial, for small spaces
Other characteristics
compact, high-resolution, low-profile, ultra-slim
Measuring range

Max.: 200 mm
(7.87 in)

Min.: 50 mm
(1.97 in)

Description

The potentiometric displacement sensor MBX series is ideal for applications where space is at a premium due to its extremely flat design with an overall height of only 7 mm. In addition, the universal cursor can be mechanically coupled in a flexible manner, eliminating the need for a push rod and saving space in the customer's application. With its open design, the encoder is intended for installation in a customer housing. The sensors are linear displacement transducers based on conductive plastic technology. The potentiometric measuring principle makes the displacement sensors insensitive to X-rays and EMC influences. Please note that a potentiometric sensor with conductive plastic technology is not intended to be integrated into the application as a "resistor". In principle, the voltage divider circuit should be used. We also recommend "overhead mounting".
