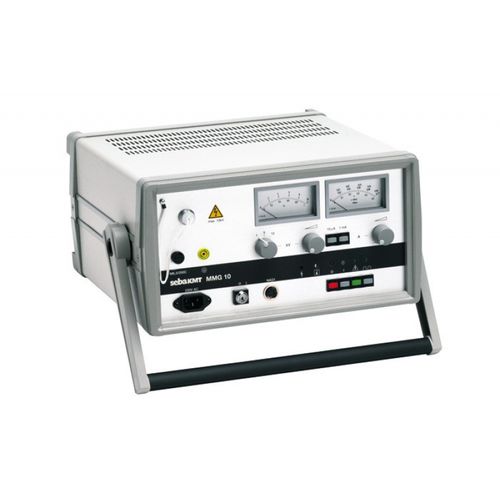

Insulation tester MMG 10

leakage currentcable

• Adjustable current limiter • Easy and powerful testing of cable jackets • Pulsed output voltage for sheath fault pinpointing • Burning of cable faults The sheath test system MMG 10 is used for the voltage testing of plastic insulated cable jackets. The test evaluated the leakage current in respect to the cable lengths. An adjustable current limiter avoids an eventual drying or unintended change of a fault spot. The high output current can also be used for the low resistive burning of a fault. For pinpointing of sheath faults in plastic insulated shielded cables and earth faults in unshielded cables, the MMG 10 provides a pulsed output voltage. The pinpointing is done by the step voltage method with the Earth fault locator ESG 80-2 / ESG NT. The MMG 10 has a high output current for the low resistive burning of a fault and also has an adjustable current limiter to avoid eventual drying or the unintended change of a fault spot.
