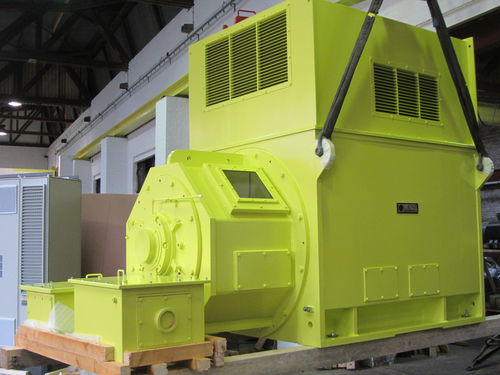

AC motor IC 01, 2-13,8kV

asynchronous690 Vwith slip ring

Modular Slip Ring Motors of the MENZEL MEBSSD Series – Flexible and Robust Voltage ratings: 2 up 13.8 kV Mounting: IM B3 for horizontal installation IM V1 for vertical installation Standard degrees of protection: IP 55, IP 23 Cooling system: The heat loss generated inside the motor (stator and rotor) is transmitted to the environment through a fan that draws ambient air through the motor. Variants, for instance in the case of speed control, forced ventilation or connection with air ducts of particularly slow-running motors, are available as custom versions. Assets: • High power efficiency and lowest running costs • Compact design, small dimensions, and low weight • Reliable and durable bearing construction • Great vibration signatures and low maintenance costs • Windings in temperature class F (VPI) • Reliability and long life expectancy • High load capacity • Low noise emissions • Custom models according to specifications Flexible Applications: • Fans • Blowers • Pumps • Mills • Compressors • Shredders etc. Short-time modifications of all stocked motors for special applications are always possible. Urgent delivery will be organized by courir transports and over-night service. Menzel Elektromotoren Berlin is certified according to DIN EN ISO 9001
