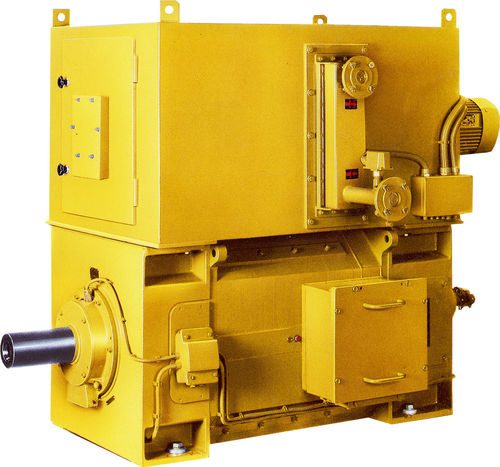

AC motor IC 81W, 2-13,8kV
three-phaseasynchronous690 V

AC motor
AC motor
AC motor
AC motor
AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC, three-phase
Type
asynchronous
Voltage
690 V
Configuration
squirrel cage
Other characteristics
medium-voltage, high-voltage
Power

Min.: 100 kW
(135.962 hp)

Max.: 20,000 kW
(27,192.423 hp)

Torque

Min.: 250 Nm
(184.3905 ft.lb)

Max.: 130,000 Nm
(95,883.0794 ft.lb)

Rotational speed

Min.: 300 rpm
(1,884.96 rad.min-1)

Max.: 3,600 rpm
(22,619.47 rad.min-1)

Description

Modular Squirrel Cage Motors of the MENZEL MEBKSW Series Voltage ratings: 2 up 13.8 kV Mounting: IM B3 for horizontal installation IM V1 for vertical installation Standard degrees of protection: IP 55, IP 23 Cooling system IC81W: The heat loss generated inside the motor (stator and rotor) is transported to the air-water heat exchanger by an internal fan. The air-water heat exchanger cools the internal circuit air that flows through it down to the required temperature. Variants, for instance in the case of speed control, forced ventilation or connection with air ducts are available as custom versions. Assets: • High power efficiency and lowest running costs • Compact design, small dimensions, and low weight • Reliable and durable bearing construction • Great vibration signatures and low maintenance costs • Windings in temperature class F (VPI) • Reliability and long life expectancy • High load capacity • Low noise emissions • Custom models according to specifications Flexible Applications: • Fans • Blowers • Pumps • Mills • Compressors • Shredders etc. Short-time modifications of all stocked motors for special applications are always possible. Urgent delivery will be organized by courrir transports and over-night service. Menzel Elektromotoren Berlin is certified according to DIN EN ISO 9001

Catalogs

No catalogs are available for this product.

See all of MENZEL Elektromotoren GmbH‘s catalogs
