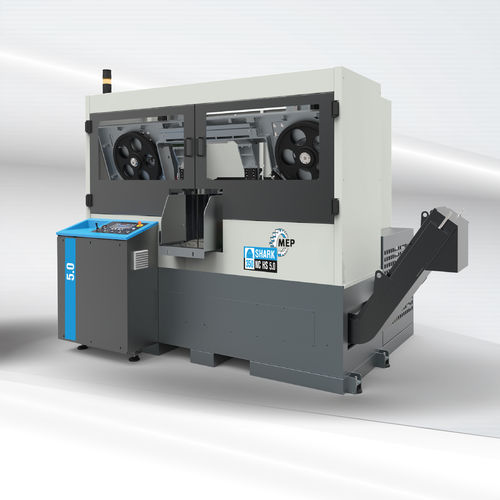

Band saw SHARK 350 NC HS 5.0
miterfor metalsfor profiles

band saw
band saw
Add to favorites
Compare this product


Characteristics

Technology
band, miter
Treated material
for metals
Applications
for profiles, for pipe, for bars
Other characteristics
with cooling system, CNC, semi-automatic, track, with touch screen control, horizontal, with hydraulic vise, with chip conveyor, with roller conveyor, with automatic feeder, single-blade, sliding, precision, PLC-controlled, large format, traveling-head, electro-hydraulic, high-capacity, single-head, machining, swivel, large, with motorized head, down-cut, electric, double-column, carbide blade, servo-driven, hydraulic, CE, multipurpose, programmable, with automatic loading, variable-speed, heavy-duty, on cutting guide rail, inverter
Round piece diameter

Max.: 350 mm
(14 in)

Min.: 0 mm
(0 in)

Description

SHARK 350 NC HS 5.0, electrohydraulic automatic double-column bandsaw for 0° cuts on profiles and solid parts in structural, stainless and alloy steels, for dimension up and in between 350mm x 350mm. - Numeric controlled machine CNC MEP 50-Windows “CE” based, that has been specifically designed by MEP for the automation of its range of products. - 7” touch screen display operator interface and push buttons for all functions of the sawing machine. It is simple and intuitive, it guarantees a reliable use and it controls all cutting parameters in real time. - Automatic acquisition of the actual starting point of the cut. - Structure in sturdy cast iron G25, to absorb vibrations and give the machine a better cutting stability and longer blade life. - Cutting head downfeed movement with hydraulic cylinder on linear guides with recirculating ball bearings. - Infinitely adjustable cutting speed from 15 to 115 m/min controlled by an AC inverter drive system. - Feeding length up to 600mm in a single stroke driven by a stepper motor and ball screw assembly. - Self-aligning feeder vice unit for feeding even not straight bars. - Software to control/assess/correct in real time: - cutting force – cutting torque and band tensioning against the programmed values. - Electro-mechanical servo-system for the blade dynamic tensioning. - Wash gun to clean the working area.
