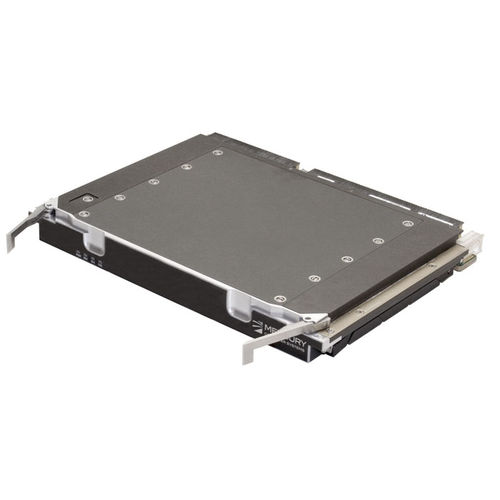

VPX single-board computer HCD6410

MPC8640Ddual-coreGbE

Designed to meet a variety of processing applications, the HCD6410 module’s eight processor cores can function as a standalone processing center, or as part of an embedded cluster for high-end digital signal processing. With air-cooled and conduction-cooled variants available, the HCD6410 high compute density module can be reliably deployed into harsh environments. Independent control, data, and management planes enables the HCD6410 module to support mapping of system-level architectures onto independent physical interfaces. For ease of portability, as well as, providing an open software-development architecture, the feature rich MultiCore Plus® software infrastructure includes access to a wide ecosystem of stacks, middleware, libraries, and tools. FEATURES and RESOURCES 4x MPC8640D dual-core processors, 1.06 GHz 1 GB or 2 GB of DDR2 SDRAM per processor, 128 MB flash/processor 4x Serial RapidIO® links GbE control plane architecture 1x XMC site configured for PCIe per VITA 42.3
