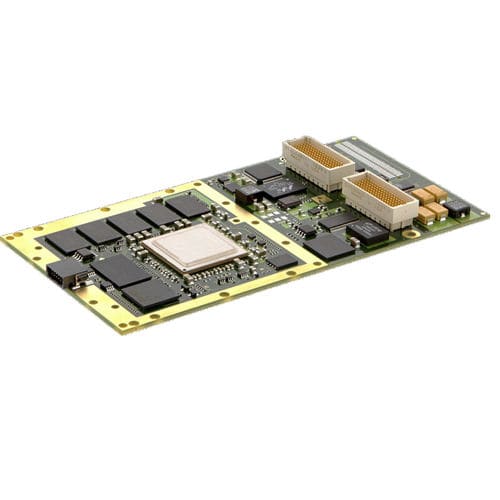

VPX single-board computer MFCC-8558

NXP QorIQ™EthernetDDR3 SDRAM

The MFCC-8558 with BuiltSAFE™ technology is a DAL-C safety-certifiable single board computer. The MFCC-8558 can be delivered with all necessary documentation, certification evidence and supporting artifacts required to prove compliance for avionics certification. Lower Malfunction Risk and Save Resources Mercury’s proven avionics modules accelerate safety-critical applications like AI machine vision and augmented reality, expedite the certification process, save aircraft resources and speed subsystem time to market. Key Features QorIQ® T2080 processor Low-SWaP, power options with avionics I/O or high performance video graphics 4x PCIe® Gen2 interfaces on XMC (full mesh support) 1x DAL-C Fast Ethernet interface on XMC Maintenance/mission mode with specific hardware logic Safety-optimized board management controller Rugged and 15 W power-efficient performance DO-254 and DO-178 artifacts for DAL-C certification Safety certification services and support Specifications Processor NXP QorIQ T2080 four dual threaded e6500 cores AltiVec unit Memory 4 GB DDR3L at 14.4 GB/s peak with ECC protection 4 GB Flash EPROM (NAND) 512MB Flash EPROM (NOR) 256 KB FRAM NVRAM Links/Connections 3x PCIe Gen2 x1 on XMC-P6 1x PCIe Gen2 x4 on XMC-P5 1x SGMII on XMC-P6 (DAL-C) (1) 2x UARTs on XMC-P6 (2) Safety Optimized Board Management Controller Voltage monitoring Temperature monitoring (thermal sensors on critical positions) Elapsed time and real-time counter Watchdog (short and long period) Error reporting Reset management Certifiable board support package
