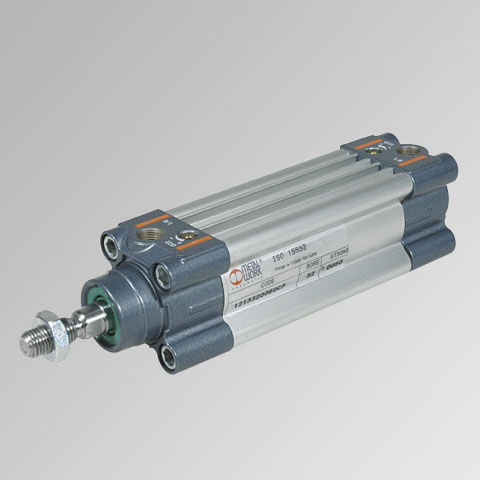

Pneumatic cylinder 3 series
with piston roddouble-actingISO 15552

pneumatic cylinder
pneumatic cylinder
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Technology
with piston rod
Configuration
double-acting
Norms
ISO 15552
Other characteristics
low-friction, oscillating, ATEX
Stroke

Min.: 1 mm
(0.039 in)

Max.: 1,200 mm
(47.244 in)

Bore

Min.: 32 mm
(1.26 in)

Max.: 125 mm
(4.92 in)

Pressure

10 bar
(145 psi)

Ambient temperature

Min.: -10 °C
(14 °F)

Max.: 80 °C
(176 °F)

Description

A typical ultra-low friction cylinder is generally used as an oscillating or tensioning cylinder. It is single acting, in the sense that compressed air is normally fed into one of the two chambers only. An external force acts on the other side. Metal Work’s ultra-low friction cylinder is designed as a double-acting one, which means the compressed air can be fed into the rear or either the front chamber. They are built to comply with ISO 15552 and are available with or without a magnet. Supplied with a series 3 barrel. A through-rod version is not available. These cylinders are always non-cushioned. The gaskets are made of NBR. A full range of accessories is available Quantity per package: 0 Minimum order quantity: 0 Unit of measure: items SEAL: NBR gaskets
