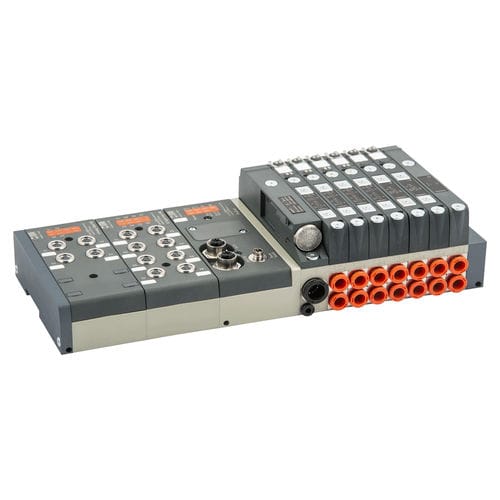

Spool pneumatic directional control valve EB 80 series
electrically-operatedpneumatic

spool pneumatic directional control valve
spool pneumatic directional control valve
spool pneumatic directional control valve
spool pneumatic directional control valve
spool pneumatic directional control valve
spool pneumatic directional control valve
spool pneumatic directional control valve
spool pneumatic directional control valve
spool pneumatic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
pneumatic, electrically-operated
Operating pressure

Min.: 3 bar
(44 psi)

Max.: 8 bar
(116 psi)

Flow rate

Min.: 350 l/min
(92 us gal/min)

Max.: 1,400 l/min
(370 us gal/min)

Description

EB 80 is defined as an electro-pneumatic system as it would be simplistic to use the term "solenoid valve island". In effect, a single assembly can combine solenoid valves of all types, multi-position bases, pneumatic and electric supplies arranged as desired in a system, digital or analogue input or output signal control modules and much more besides. The EB 80 system is protected by numerous patents and utility models, which enhance the most innovative design solutions. The possible combinations are endless, but the most amazing thing is that they can be obtained using a small number of basic components. In order to achieve this objective, a single size of small yet high-performance valves to cover the vast majority of applications was conceived. A single electronic control unit is provided when supplying 12VDC or 24VDC valves with multi-pole cables or with a field bus for each protocol. All EB 80 versions come with an efficient diagnostic system. Quantity per package: 0 Minimum order quantity: 0 Unit of measure. items
