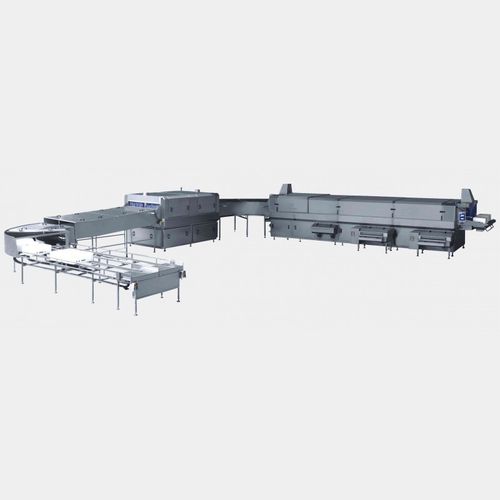

Water cleaning tunnel MP-3000

automaticprocessindustrial

Is designed to wash containers of max. dimension (LxWxH) 700 mm x 600 mm x 400 mm and container's covers. The machine allows achieving maximum wash and disinfection effects. The MP-3000 washer is equipped with two, independently controlled washer lines under one housing. The structure of the device facilitates expansion of the line with different modules, which, depending on the expectations of the target recipient, provide better wash capacity and/or less water after the air blow-off process. Construction advantages: ■ Highly efficient of 1800 containers per hour ■ Maximum of washing and disinfection effectiveness ■ system of independent adjustment of top and side guides for each lane ■ two independently driven and controlled stainless steel plate chain conveyors with a smooth speed adjustment ■ closed water circulation system with a filtration system ■ system of rinsing section’s cut-off when there is no container in the washer ■ pump for improving efficiency of rinsing ■ stainless steel centrifugal pumps ■ quick release high pressure nozzles with adjustable angle and direction ■ water heating system: stainless steam collectors, exchanger water-water ■ automatic system of water temperature control with a display of set and current parameters ■ conductimetric - detergent concentration measurement, automatic dosing and signaling of detergent shortage ■ possibility to provide a customized system of loading and collecting containers designed in any configuration ■ the washer is compatible to operate with an automatic ■ container storage system ■ guards protection against accidental opening
