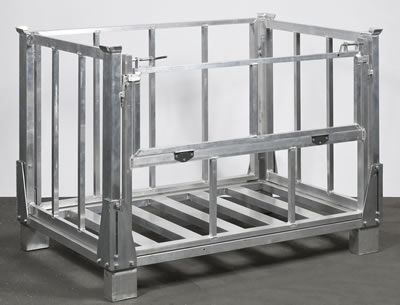

Collapsible pallet-box
METALCONSTRUCT Zrt
LOGISTICAL PRODUCTS - Containers
Collapsible containers
Structure, design
* Material: aluminum alloy profile and plate
* Joints: riveted and welded joints
* Dimensions in collapsed state. 1206x806x470 mm
* The main parts are connected together with joints that cannot be released
* The loading surface of container is grated
Properties
* Corrosion resistant material
* Maintenance free
* Surfaces easy to clean
* Long service life
* Multiple-way logistic device, product-price holder packaging material can be saved
* Sidewalls are covered with perforated sheets in order to ensure the ventilation and the visibility of content
* Labes with embossed bar code on the blocks for electronic reading.
Additional product
* Roller frame
Extra versions - subject to special agreement
* With different main dimensions (with the scale relations preserved)
* Solid cover instead of perforated plate
* Different load capability
Application
* Suitable for storing and transporting materials and goods
* Opening the container: moving the main parts in the same order of sequence, by means of handles; for closing, the operations shall be performed in reverse order.
* For loading, the cover shall be opened and the frontal side element folded down.
* For movement of the container, hand-trolley or fork-lift or roller conveyor can be used
* The containers can be stacked on each other in collapsed state in order to minimize the space requirement
