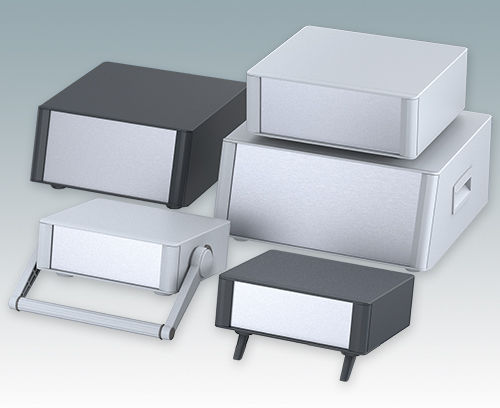

portable enclosure / rectangular / modular / aluminum
Technomet Metcase

{{requestButtons}}

Characteristics

  • Construction:

    portable

  • Configuration:

    rectangular, modular

  • Material:

    aluminum

  • Other characteristics:

    design, with handle, protection, snap-in, screw cover

  • Application:

    electronic equipment, for instrumentation, for printed circuit boards

  • Width:

    225 mm, 275 mm, 350 mm

  • Height:

    75 mm, 100 mm, 125 mm, 150 mm

  • Depth:

    Max.: 320 mm

    Min.: 200 mm

Description


Technomet
Highly attractive instrument enclosures

Advanced desktop and portable enclosures in eight standard sizes
Modern and cohesive design with no visible fixing screws
Die cast front and rear bezels fit flush with the case body for a smooth appearance
Snap-on front trims hide the case and front panel fixing screws
Snap-on rear trims hide the case fixings, but leave the rear panel screws open
All sizes available with or without a tilt/swivel carry handle
Three sizes with sloping front bezel
Recessed side handles fitted to 150 mm high models without carry handle
Ventilation holes provided in the base and rear panel
Base panel pre-fitted with four M3 PCB mounting pillars
Internal chassis with horizontal guide positions for slide-in PCBs
Accessory snap-in PCB guides fit to the chassis guide positions
Removable rear panel - recessed for protection of connectors, switches etc.
Anodised front panel (accessory) - recessed for protection of keypads, displays etc.
All case panels fitted with M4 threaded pillars for earth connection
Supplied with four modern ABS feet with non-slip pads
Models without carry handle also supplied with tilt legs on the feet
On request the front trims can be replaced by rear trims - if open access to the front panel screws is required.
