19" rack enclosure M66194 seriesrectangularaluminiumelectronic equipment
Add to favorites
Compare this product
Characteristics
- Construction
- 19" rack
- Configuration
- rectangular
- Material
- aluminium
- Application
- electronic equipment, for instrumentation
- Other characteristics
- with handle
- Width
540 mm
(21.3 in)- Height
200 mm
(7.9 in)- Depth
400 mm
(15.7 in)
Description

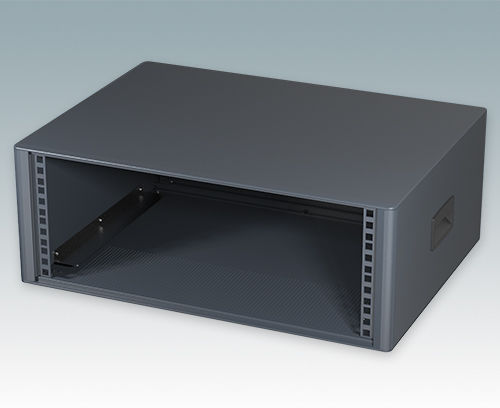

Modern and highly attractive 19" instrument enclosure for mounting 4U subracks, chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.
The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.
Catalogs
No catalogs are available for this product.
See all of Metcase‘s catalogs
