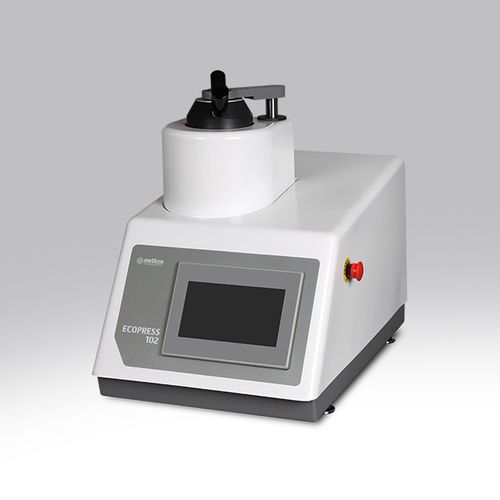

Automatic mounting press ECOPRESS 102

hothydraulic

ECOPRESS 102 is high capacity, state of the art automatic mounting press having advanced software with programmable coloured HMI touch screen controls. Robust bayonet closure allows for quick and safe operation. Wide selection of mould assemblies from 25 to 50 mm in diameter are available. Two mounts can be produced simultaneously with the use of an intermediate ram. ECOPRESS 102 have pre-programmed moulding sequences built-in (factory set) from which you can choose according to your own applications. You only need to place the sample in the mould, select the program number for your specific application and depress the “Start” button. That’s it! ECOPRESS does the rest for you! After pressing the start key, the fully automatic program sequence is executed with the preselected parameters. The pressure, heating and cooling are automatically controlled and the total cycle time of a complete cool mount takes 7 to 9 minutes. The parameters can be changed and adjusted during the mounting process. Technical Specifications • Max. Pressure, bar : 300 • Max. Temperature, C : 200 • Heating Power, W : 1650 • Water Cooling : Yes • Slow Cooling : Yes • Operation : Programmable/Hydraulic • Display : 7” HMI touch screen LCD • Mould Assembly, mm : 25-50 • Size W x D x H, (cm) : 36x 55x 48 • Weight, (kg) : 38
