Electrical cable cutting and stripping machine AM 5000 Series

bladeelectricautomatic

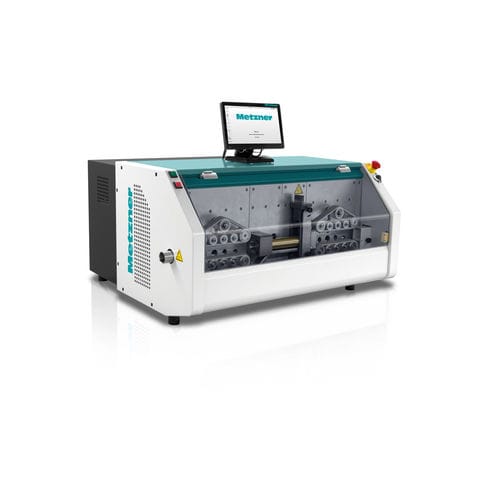

The Metzner AM 5000 range includes the flagship models for precise processing of thick cables up to 240 mm² section and 35 mm diameter. Even the basic specification models, with their high torque and powerful three-stage step motors offer the highest level of cutting and haul-off power. All models are equipped with as standard with the Metzner double-knife system that enables very varied and multi-stage processes to be performed. Moreover, with convincing operator-friendliness and long service life. Metzner AM 5000 models are also suited to processing thinner braided cables from 1.5 mm² The stripping full haul-off 1side/2nd side amount to 270-450 mm and 90-270 mm, for partial haul-off 450 mm and 270 mm. For interuption-free automatic production, a number of sensors monitor the material feeding If a material blockage occurs, the production stops automatically and the operator is informed about the cause of the fault. The AM 5800 has an outstanding level of cutting and haul-off power as well as many varied processing possibilities for cables up to 35 mm diameter. This model is equipped with cut and haul-off power for cables up to 185 mm² section and 30 mm diameter as well as a circumferentially rotary cutting module -for processing hybrid cables and wires with thin cable covering and many other applications. The models of the AM 5000 range are especially suitable for precise automatic cutting to length and multi-stage insulation removal with thick cables up to 240 mm² section and 35 mm diameter. An insight into the working processes can be had in our product videos.
