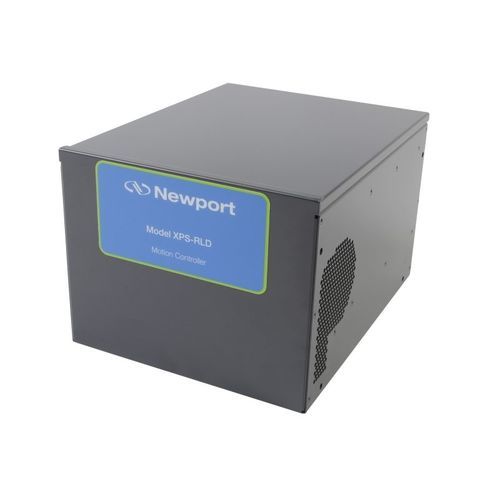

4-axis motion controller XPS-RLD series

servomotorEthernetTCP/IP

The more user friendly, 4-axis, XPS-RLD universal motion controller drives a variety of motor types and execute complex motion through high speed Ethernet TCP/IP interface. From its outstanding servo rate and triggering, to its intuitive GUI and Plug-and-Play ESP technology, the lower cost XPS-RLD is an excellent choice for both research and OEM applications. •Up to 4 axes universal motion controller •ESP Plug and Play •User-friendly interface •Single-click stage configuration •.NET assemblies ESP Plug-and-Play Compatibility When an ESP-compatible stage is connected to the XPS, the stage is quickly recognized and operating parameters are configured without the need for user inputs. This Plug and Play feature is not only transparent to the user, but it also ensures the safe operation of the stage. Universal Driver Card Module The XPS-DRV11 is a universal digital driver card compatible with the XPS-D and XPS-RLD controllers. It has been optimized to perform with most of Newport's DC, stepper and linear motor positioners. It is not included in the controller and needs to be purchased separately. The Stage and Controller Compatibility table lists the stages that the XPS-DRV11 can drive. Single-click Configuration The web interface allows a quick configuration of the XPS-RLD, as simple as that in the ESP301 controller. Intuitive File Management The system files stored in the XPS-RLD are easily accessible, much like a Windows environment. At the same time, these files can be edited and saved in situ, without having to pull them from the folders and opening them with notepad or other text editor.
