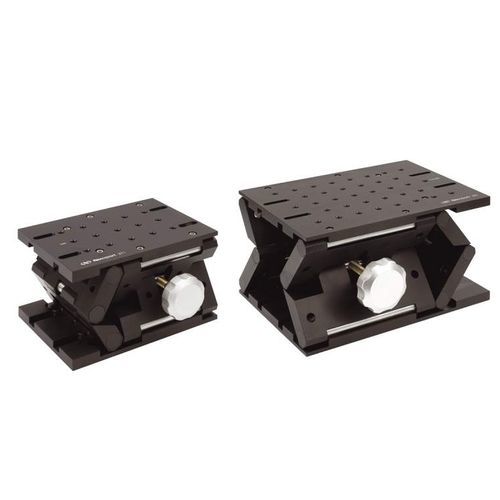

Lab jack positioning table 2 series

tiltZ-axisvertical

The innovative design of our high load lab jack employs three orthogonal hinges that straighten to form a box making them more stable with increasing height. •High load capacity labjack without creep •Unique orthogonal hinges minimize wobble, tilt, and twist •3-mrad parallelism •Exceptionally smooth jack adjustment •1/4-20 and M6 threaded mounting holes Conventional scissors and dual-pantograph jacks lift by decreasing the distance between crossed members and are inherently less stable at higher elevations. In contrast, Newport’s innovative design employs three orthogonal hinges that straighten to form a box, becoming more stable with increasing height. The side mounted height adjustment controls a stout drive screw connecting the pivot pins of the broad side hinges. The end hinge prevents tilting or swaying and ensures only vertical motion. The 281 offers 3 full inches of vertical adjustment with 48 revolutions of the adjustment knob. The model 271 has lower sensitivity and a smaller adjustment range. Metric and Imperial Threads Included The 271 and 281 Lab Jacks are both English and Metric compatible. The top plate has an array of 1/4-20 tapped holes on 1 in. centers while the bottom plate has an array of M6 holes on 25 mm centers. Both the top and bottom plates have four clearance slots used for mounting the lab jack to optical tables.
