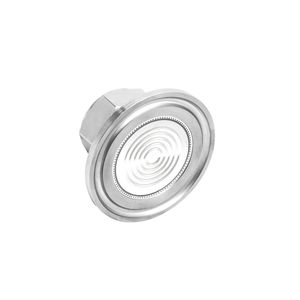

relative pressure sensor / piezoresistive / O-ring / stainless steel
MPM283 Micro Sensor Co.,Ltd

{{requestButtons}}

Characteristics

  • Pressure type:

    relative

  • Technology:

    piezoresistive

  • Mounting:

    O-ring

  • Other characteristics:

    stainless steel, compact, OEM, silicone oil-filled

  • Process temperature:

    Max.: 125 °C (257 °F)

    Min.: -40 °C (-40 °F)

  • Pressure range:

    Max.: 100,000 kN/m² (14,503.77 psi)

    Min.: 100 kN/m² (14.5 psi)

Description

MPM283 piezoresistive pressure sensor is integrated construction, high endurance, high stability and good reliability , it can be used specially for middle and high pressure measurement.
The installation dimension is consistent with general products which makes the sensor has a good interchangeability.

Specifications:
1. Pressure range: 0~ 100kPa...100MPa
2. Gauge, absolute, sealed gauge
3. Power supply: ≤ 2.0mADC; ≤10V DC
4. Temperature compensated: -10~+80C
5. Output signal: min. 70mVDC
6. Housing: SS316L
7. Pin: Kovar or silicon rubber flexible wires
8. O-ring: Viton

Applications:
1. Liquid, gas
2. Cooling, compressor
3. Medical, food
4. Hydrolic
5. Marine, level
6. Industrial process control

Feel free to contact us via sales@microsensor.cn or visit www.microsensorcorp.com for more details.
