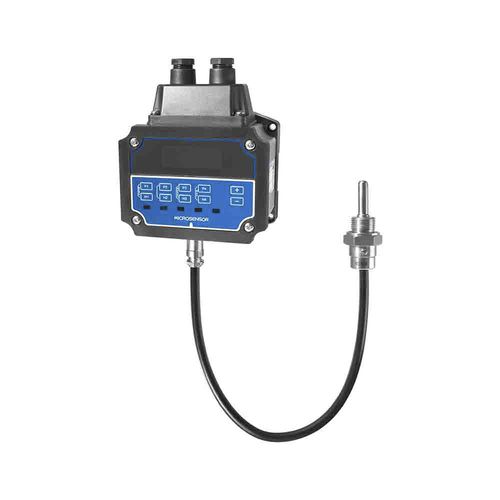

Analog temperature controller MTM4881

with LED displaythermoelectricprogrammable

Liquid Medium Temperature Measurement, Detection of Oil Temperature of Hydraulic and Lubrication Transmission System MTM4881 is a Temperature Transmitting Controller for measuring, displaying, transmitting, and controlling industrial processes. The switch support up to 5 relay and 1 analog output. 4 installation ways includes rail mounting, cover mounting, back mounting and joint mounting. The product can achieve precise measurement and provide quick response and control of multiple relays under compensating and adjusting the sensor. The meter supports peak record and action delay, providing 4 digit LED indicator, easy to read. Multiple buttons design makes the easier operation and more convenient. Features • Real-time temperature display in unit: ℃ or ℉ • Button programming, easy operation • Record the Max. in operation (button for clearing up) • Support rail, cover and back mounting • Switchable analog output • Intrinsically safe, Exia mark is Ex ib IIA T6 Gb • MODBUS Specifications Power Supply: • Non Intrinsically Safe: (220±44)V AC / 22V~32V DC • Intrinsically Safe: 22V~28V DC (Supplied by Safety Barrier) • Range: 0kPa~10kPa... 60MPa • Overpressure: 1.5 FS • Accuracy: ≤±0.25%FS; ≤±0.5%FS • Repeatability: ≤±0.2%FS
