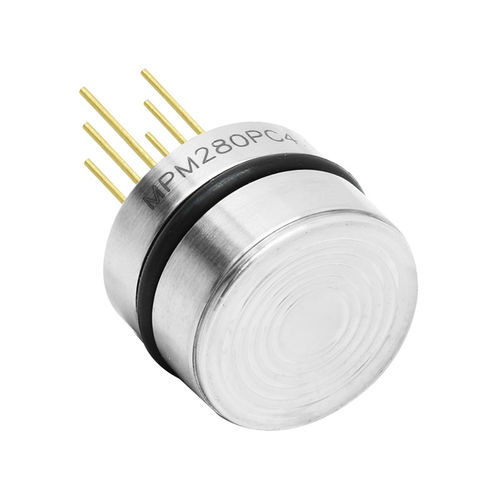

Relative pressure sensor MPM280F

absolutemembraneO-ring

MPM280F flat membrane pressure sensor is particular for food, medicine, and hygienic industries. The flush diaphragm can be in contact with the measuring medium over a large area. Even if the corrugated diaphragm has residual stains or fouling, it is easy to clean. The structure can effectively prolong the life of the sensor. We provide male thread and clamp connection for optional. MPM280F sensor is packaged in a stainless steel 316L housing and sealed by FKM or silicon O-ring. Standard or customized in various mechanical and electrical configurations are available. Feature • Flush diaphragm • Hygienic structure optional • Negtive pressure measurement is available Specification • Size: Φ19x13.5mm • Power supply: ≤2.0mA DC • Type: Gauge, Absolute and Sealed gauge • Overpressure: 2 times FS • Repeatability: ±0.05 (Typ.) Used For Industrial Process Control, Level Measurement, Gas & Liquid Pressure Measurement
