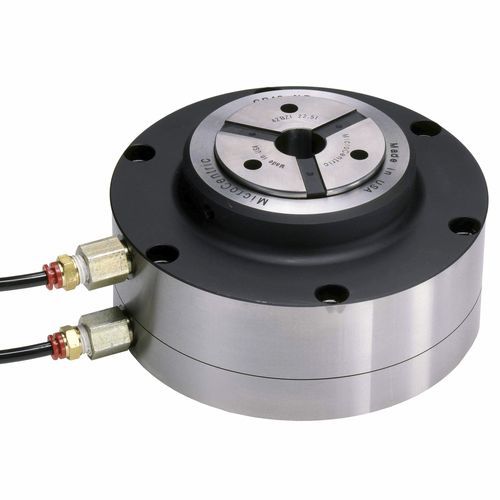

The NRB series is a pneumatic or hydraulically actuated self-contained Pull Back design for stationary applications. The collet is coupled to the built-in piston and is drawn into the tapered seat as the chuck is actuated. Part stops and ejectors can be mounted inside the chuck body.
CB-NRB Features
Self-contained design with built-in cylinder can be hydraulic or pneumatically operated
Pull Back design maximizes the efficiency of the clamping system by concentrating the chucking force in the direction of the machine table, in addition to drawing the workpiece against the part stop
Lubricated-for-life design requires minimal maintenance
All components hardened and precision ground for highest accuracy and long life.
Non-rotating dead length designs are quoted on request. CB120-NR & CB140-NR models are also quoted on request.
