Cylindrical distance sensor mic+
ultrasonicanalogIO-Link

cylindrical distance sensor
cylindrical distance sensor
Add to favorites
Compare this product


Characteristics

Configuration
cylindrical
Technology
ultrasonic
Output
analog, IO-Link
Protection level
rugged, weather-resistant, IP67
Other characteristics
non-contact, programmable, with digital display, for automation, for agricultural machinery
Range

Max.: 8,000 mm
(26 in)

Min.: 30 mm
(1 in)

Description

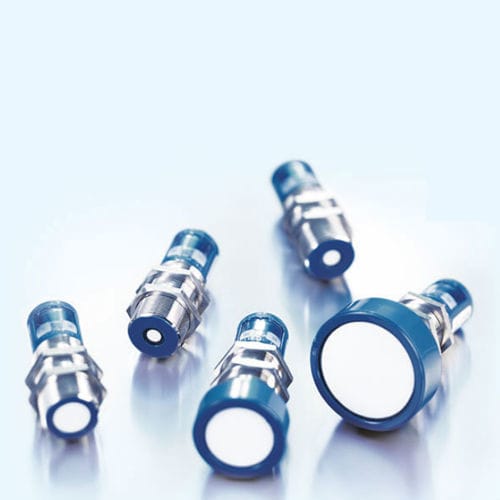

The mic+ sensor family embedded in its M30 housing design covers a measuring range from 30 mm to 8 m with its five detection ranges. Depending on the detection range, the internal resolution for distance measurement is 0.025 or 2.4 mm. All sensors are equipped with integrated temperature compensation. Highlights - Digital display with direct measured value output in mm/cm or % - IO-Link interface for support of the new industry standard - Numeric configuration of the sensor using digital display permits complete advance configuration of the sensor - Automatic synchronisation and multiplex operation for simultaneous operation of up to ten Sensors in close quarters Basics - 1 Push-Pull switching output pnp or npn basis - 1or 2 switching outputs in pnp or npn variants - Analogue output 4–20 mA and 0–10 V with automatic switching between current and voltage outputs - Analogue output plus 1 pnp switching output - 5 detection ranges with a measurement range of 30 mm to 8 m - microsonic Teach-in by using button T1 and T2 - 0.025 mm to 2.4 mm resolution - Temperature compensation - 9–30 V operating voltage - LinkControl for configuration of sensors from a PC
