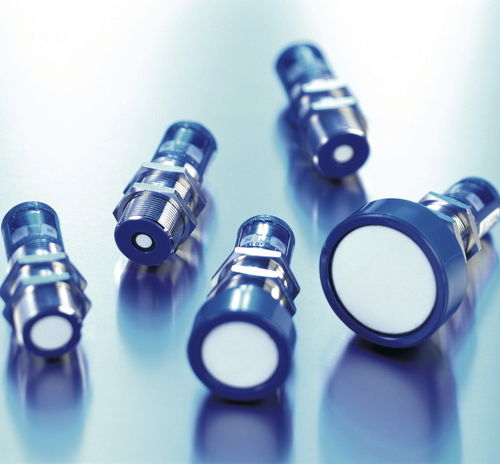

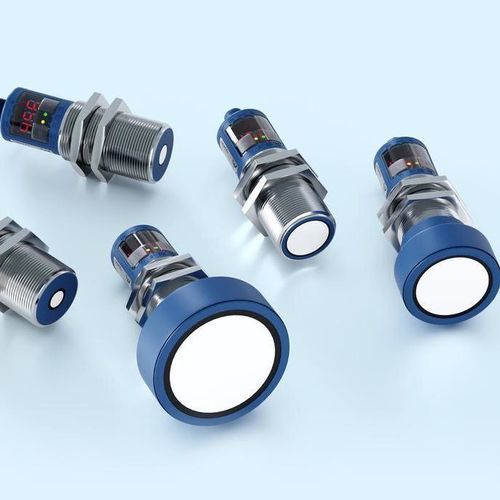

Ultrasonic proximity sensor mic+
cylindricalM30digital

ultrasonic proximity sensor
ultrasonic proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Shape
cylindrical
Diameter
M30
Output signal
with switching function, digital, IO-Link
Electrical connection
M12 connector
Mounting
threaded
Protection level
IP67
Measuring range

Max.: 8,000 mm
(314.96 in)

Min.: 30 mm
(1.18 in)

Description

The mic+ sensor family embedded in its M30 housing design covers a measuring range from 30 mm to 8 m with its five detection ranges. Depending on the detection range, the internal resolution for distance measurement is 0.025 or 2.4 mm. All sensors are equipped with integrated temperature compensation. Highlights - Digital display with direct measured value output in mm/cm or % - IO-Link interface for support of the new industry standard - Numeric configuration of the sensor using digital display permits complete advance configuration of the sensor - Automatic synchronisation and multiplex operation for simultaneous operation of up to ten Sensors in close quarters Basics - 1 Push-Pull switching output pnp or npn basis - 1or 2 switching outputs in pnp or npn variants - Analogue output 4–20 mA and 0–10 V with automatic switching between current and voltage outputs - Analogue output plus 1 pnp switching output - 5 detection ranges with a measurement range of 30 mm to 8 m - microsonic Teach-in by using button T1 and T2 - 0.025 mm to 2.4 mm resolution - Temperature compensation - 9–30 V operating voltage - LinkControl for configuration of sensors from a PC
