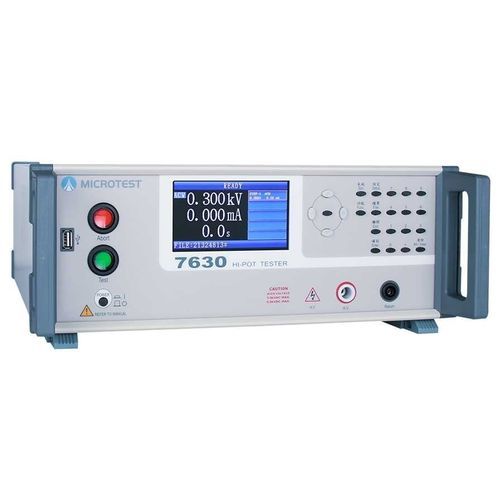

Hipot tester 7630

voltageinsulation resistanceAC

Features ■ Hi pot ACW 5KV/30mA ■ Hi pot DCW 6KV/10mA ■ Insulation 1KV/12000MΩ ■ Arcing detection ■ Measuring Time (0.1 ~ 999s) ■ Adjustable ramp time (0.1 ~ 10s) ■ Safety Switch(INTER LOCK) ■ Option PC Link Software ■ Support AC 5000V, DC 6000V, Insulation Resistance 12GΩ MICROTEST 7630 is a 3-in-1 test instrument that supports AC withstand voltage, DC withstand voltage, and insulation resistance testing functions. It has a maximum AC withstand voltage of 5000V with a leakage current of 30mA, a maximum DC withstand voltage of 6000V with a leakage current of 10mA, and a maximum insulation resistance of 12000MΩ. It supports PC connection software for remote programming and storage of test data. It can also be linked to a barcode scanner for barcode scanning, facilitating production traceability management.
