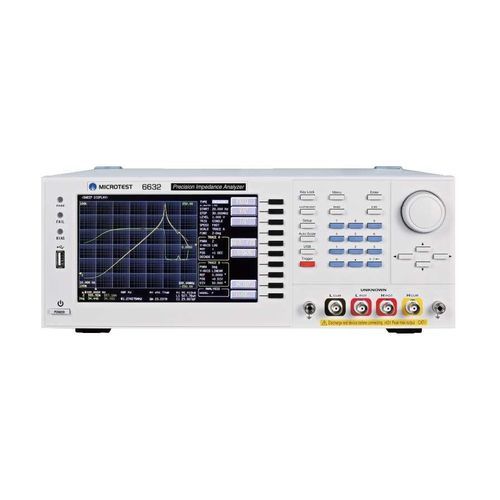

Impedance analyzer 6632 series

electricbenchtopautomatic

Features ■ Basic accuracy up to ±0.08% (typical ±0.05% ) ■ Automatic Level Control (ALC) ■ Output impedance 25Ω/100Ω, switchable ■ Support meter mode and list mode, sweep mode ■ Built-in DC Bias voltage ±12V ■ Ultra-high measuring speed < 3ms ■ Open circuit/short circuit/load correction function ■ Comparator function ■ BIN classification function ■ Built-in the Permeability-μr ■ Built-in the Dielectric constant-εr MICROTEST 6632 Impedance Analyzer offers a wide frequency range of 10Hz to 50MHz for measuring the impedance characteristics of components and materials. The measured parameters include |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (Susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), C (capacitance), ESR (equivalent series resistance), ε (relative permittivity), and μr (relative permeability). It supports both Meter mode and Sweep Analysis mode, allowing measurement results to be displayed in numeric or graphical formats. It supports LAN/USB Host/USB Device/GPIB/RS-232 communication interfaces, making it compatible with automation equipment or human-machine interfaces (PLC).
